Wholesale GH-5008 Brass pressure reducing valve

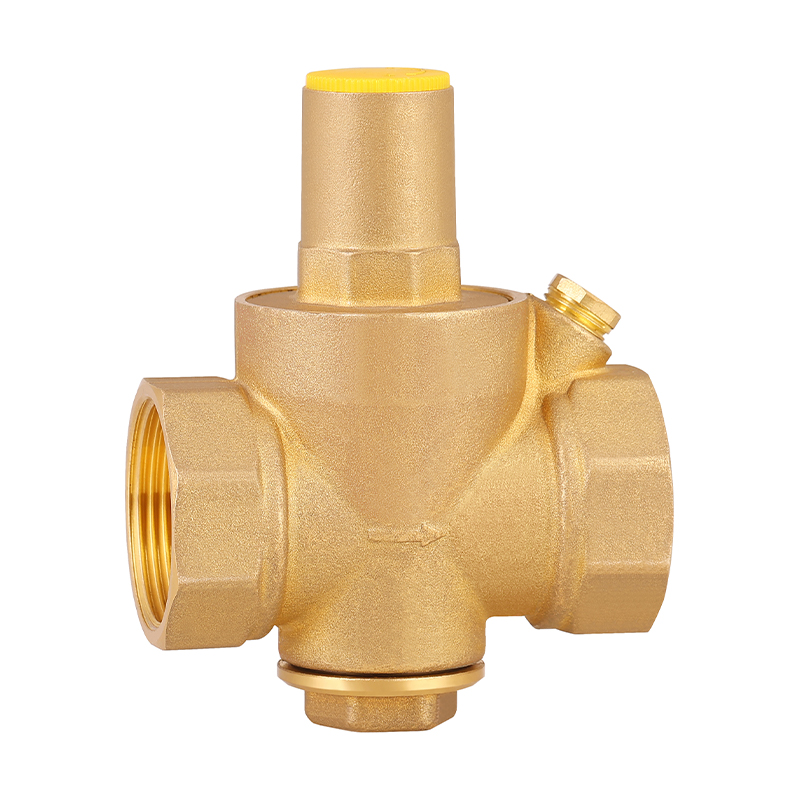

GH-5008 Brass pressure reducing valve
  • GH-5008 Brass pressure reducing valve
Other valves

GH-5008 Brass pressure reducing valve

The brass pressure reducing valve (PRV) is a critical flow control device designed to maintain stable outlet pressure within a preset range by adjusting the opening of its internal closure element (e.g., diaphragm, piston, or plug), thereby regulating media flow and protecting downstream equipment from pressure surges or fluctuations. Engineered for reliability in dynamic conditions, it ensures consistent outlet pressure even with varying inlet pressures, making it indispensable for applications such as municipal water supply networks, high-rise building plumbing, mining operations, and industrial process lines.Precision-machined components and a responsive control mechanism automatically compensate for inlet pressure changes, safeguarding pumps, meters, and piping from overpressure damage.A calibrated adjustment screw or spring assembly allows easy customization of outlet pressure to meet system requirements.

Product Features:
Precision Design: Each brass pressure reducing valve is precision-machined to ensure high reliability and long service life, capable of withstanding pressure fluctuations in dynamic working environments.
Automatic Pressure Adjustment: The built-in automatic control mechanism responds to changes in inlet pressure in real-time, ensuring the outlet pressure remains within the set range at all times.
Durable Material: Made from high-quality brass, the valve is resistant to corrosion and wear, making it suitable for various industrial and commercial applications.
Easy Adjustment: Equipped with an adjustable screw or spring assembly, the user can easily customize the outlet pressure to meet specific needs.

E-mail: grace@ghmetalwork.com
Inquiry Us Now!
PREV：GH-5009 Brass balancing fan coil unit body
NEXT：GH-5007 Brass regulating balancing valve with test points
  • Nominal Pressure 1.6Mpa
    Working Medium Water, Non-corrosive liquid
    Working Temperature -20℃≤ t ≤80℃
    Pipe thread ISO228
    Size 1/2"-2"
    Forged brass body for durability and corrosion resistance


    Applications:
    Municipal Water Supply Systems: Ensures stable water pressure supply, preventing pipeline bursts and equipment damage, especially in areas with fluctuating water pressure.
    High-rise Building Plumbing: Due to uneven water pressure in tall buildings, the pressure reducing valve balances the pressure across floors, ensuring stable water supply.
    Mining Industry: In mining operations, equipment needs to maintain consistent working pressure to avoid production inefficiencies caused by pressure variations.
    Industrial Process Pipelines: In industrial pipelines where precise control of flow and pressure is required, the brass pressure reducing valve plays a critical role in ensuring smooth operation.

    Technical Specifications:
    Max Working Pressure: Customizable according to needs, typically suitable for pressure ranges up to 16 bar.
    Valve Body Material: High-strength brass, compliant with corrosion resistance standards.
    Adjustment Range: The adjustable range can vary from 1 bar to 10 bar, depending on system requirements.
    Connection Type: Threaded or flanged connection for easy installation and maintenance.
    Working Temperature: -10°C to +80°C, suitable for various operating environments.

    User Guide:
    Installation Instructions: Before installation, ensure the correct direction of the valve's inlet and outlet. Clean the connecting pipelines to avoid impurities affecting the valve's performance.
    Adjustment Instructions: Use the adjustment screw or spring assembly and rotate slowly to find the optimal outlet pressure. Fine-tune based on the actual pressure fluctuations in the system.
    Maintenance: Regularly check the valve's sealing components, clean any accumulated dirt or debris, and maintain the valve in optimal working condition. Lubricate moving parts when necessary.
